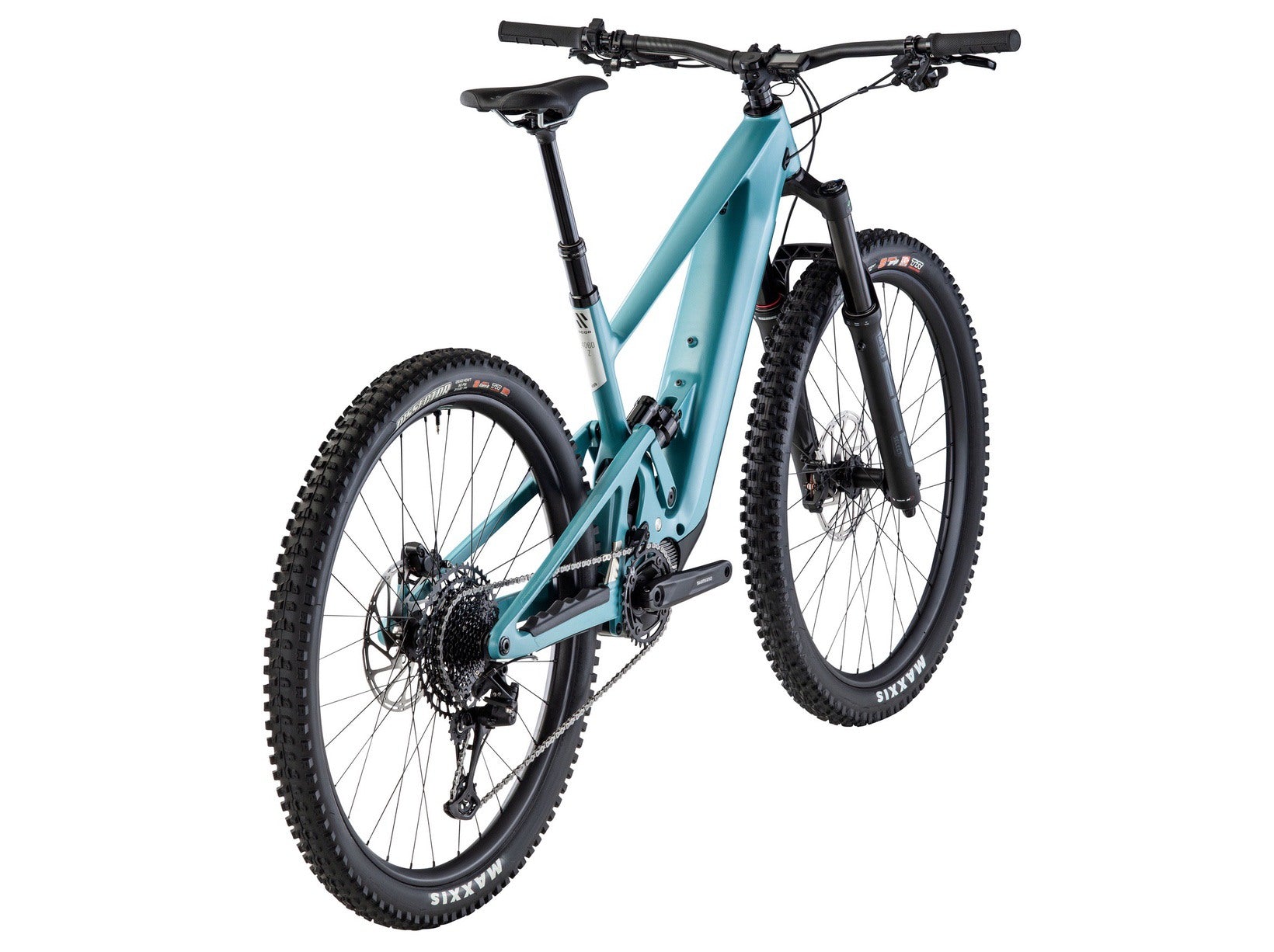

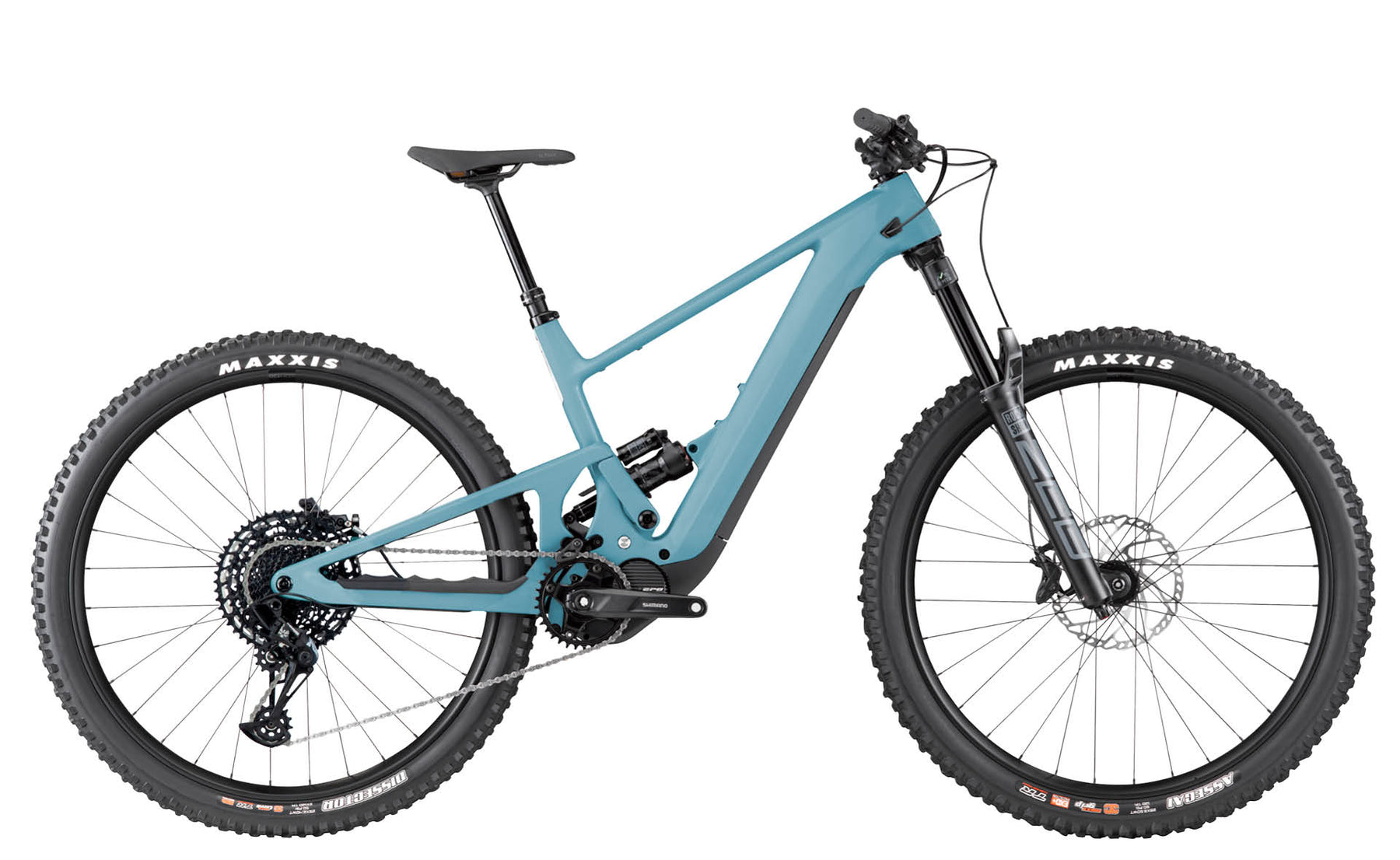

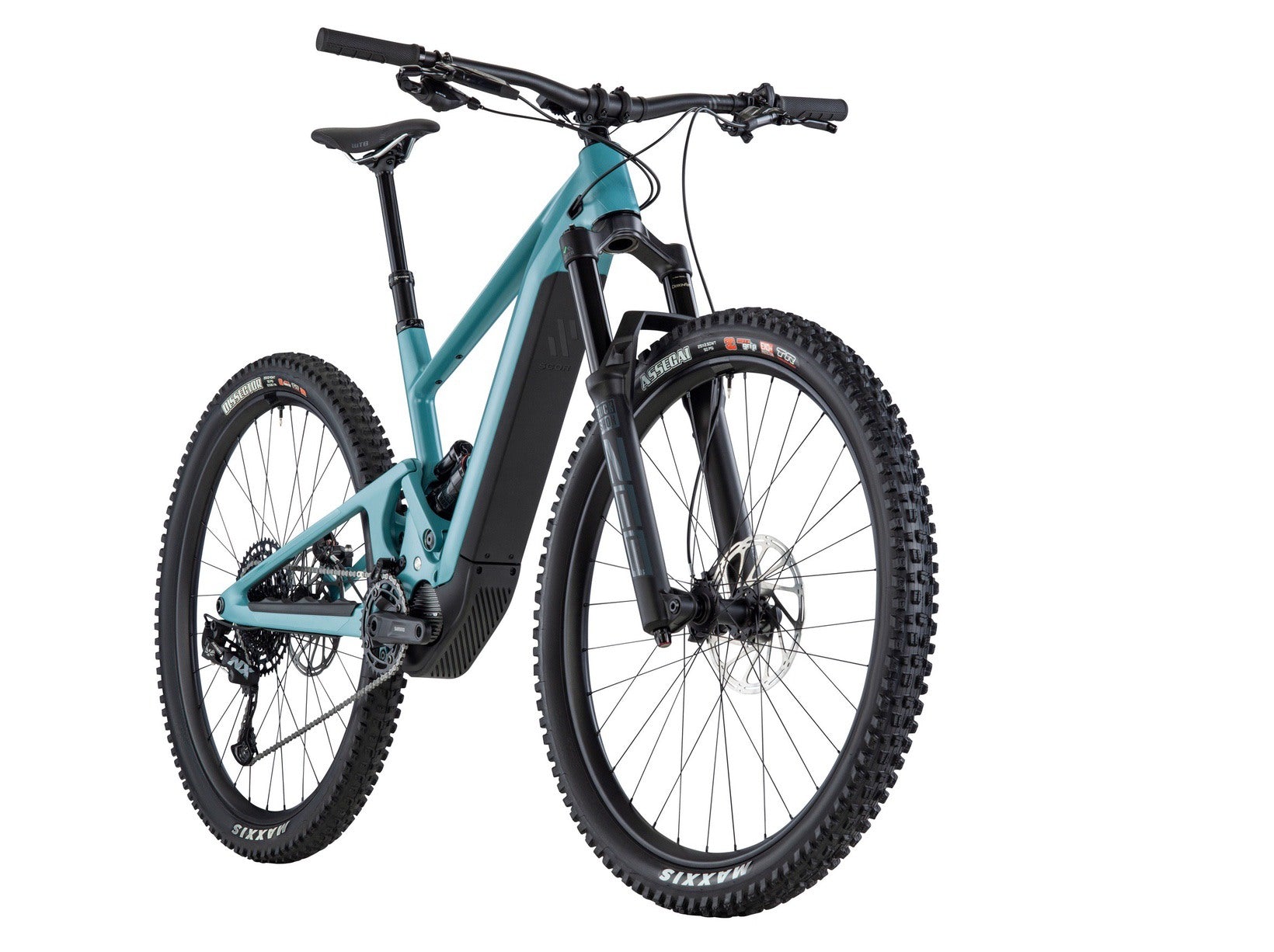

4060 Z ST NX

Blue Steel

140mm Rear / 150mm Front Travel, 29” Wheels
RockShox ZEB Select / RockShox Super Deluxe Select Suspension
SRAM NX Eagle Drivetrain, SRAM Code R Brakes

Regular priceUSD 7,499.00
USD /
Tax included.

SKU: 30005896
Size

4060 Z ST NX

Parts & Accessories

  • Shipped to your local bike shop
  • FAQ
A trail bike that mixes zip with zap, the 4060 Z ST NX makes no excuses for leaving you buzzing. Packing a powerful punch on the ups and the downs it’s built for a good time and a long time. A full-carbon frame, quality suspension and a bulletproof selection of components mean you’re good to go from the get-go.

Technology

Technical Details

Frameset

Frame:
SCOR 4060 Z Full Carbon Frame | Lower-Link Driven Instant Center Linkage | 140 / 160mm Rear Travel | Boost 148 | SRAM UDH

Fork:
RockShox ZEB Select RC | 150mm Travel | 44mm Rake

Suspension

Front Suspension:
RockShox ZEB Select RC | 150mm Travel | 44mm Rake

Rear Suspension:
RockShox Super Deluxe Select R Hydraulic Bottom Out | 210 x 47.5mm

E-System

Drive Unit:
SHIMANO Steps EP8 DU-EP801

Battery Pack:
Darfon 36V | SHIMANO Steps service included | 720 Wh

Display:
SHIMANO Steps EP8 Wireless Cycle Computer SC-EM800

Drive Unit Control:
SHIMANO Steps EP8 Left Switch Unit SW-EM800-L

Charger:
Darfon Smart Plus 100-240V | 4A | EU

Cockpit

Stem:
SCOR Alloy Stem | 31.8mm Bar Bore | 35 mm Length | 0° Angle

Handlebar:
SCOR Alloy Bar | 31.8mm Clamp | 800mm Wide | 20mm Rise | 5° Upsweep | 9° Backsweep

Grips:
VP VPG-125A

Seat

Seatpost:
X-Fusion Manic | S 125mm | M 150mm | L / XL 170mm Travel

Saddle:
WTB Silverado Medium Steel SL

Drivetrain

Crankset:
SHIMANO (FC-EM600) | 165mm Length

Chainrings:
34T

Cassette:
SRAM NX PG-1230 Eagle

Cassette Size:
11-50T

Chain:
SRAM NX Eagle

Rear Derailleur:
SRAM NX Eagle

Shifters:
SRAM NX Eagle Trigger

Gears:
1 x 12

Brakes

Brake Levers / Calipers:
SRAM Code R

Rotors:
SRAM Centerline | 6-Bolt

Rotor Size (F/R):
220 / 200mm

Wheels

Rims:
XDH-130 | 32 Spokes | 6061-T6 Alloy | Welded Joint | 30mm Internal Width | Tubeless ready

Hubs (F/R):
XDH-130 | 32 Spokes | Sealed Cartridge Bearings

Tires:
Maxxis Assegai 29 x 2.5" 3C MaxxGrip Exo+ TR (F) | Maxxis Dissector 29 x 2.4" 3C MaxxTerra DD TR (R)

Tubeless Information:
Tubeless Ready Rims | Tubetype Tires

Additional Information

Tire Clearance:
Width: 64mm | Diameter: 750mm

ASTM Classification:
Level 4

System Weight Limit:
130kg

Size S M L XL
Rider Height 155 - 170 165 - 180 175 - 190 185 - 200
BB Drop (SLACK) 19 19 19 19
BB Drop (STEEP) 16 16 16 16
BB Height (SLACK) 350 350 350 350
BB Height (STEEP) 353 353 353 353
Chainstay 435 435 435 435
Fork Length 580 580 580 580
Fork Rake 44 44 44 44
Front Center (SLACK) 773 798 823 853
Front Center (STEEP) 761 785 810 840
Head Tube 87 99 115 127
HT Angle (SLACK) 63.8 63.8 63.8 63.8
HT Angle (STEEP) 65 65 65 65
Reach (SLACK) 435 459 485 515
Reach (STEEP) 431 456 481 511
Seat Tube 400 425 440 470
ST Angle @750mm Saddle Height (SLACK) 76.5 76.5 76.5 76.5
ST Angle @750mm Saddle Height (STEEP) 76 76 76 76
ST Angle Actual (SLACK) 69 69 69 69
ST Angle Actual (STEEP) 68.5 68.5 68.5 68.5
ST Angle Effective (SLACK) 77.9 77.9 77.9 77.9
ST Angle Effective (STEEP) 77.4 77.4 77.4 77.4
Stack (SLACK) 601 612 626 637
Stack (STEEP) 603 615 629 640
Stand Over Height (80 in Front of BB) 759 771 775 791
Stand Over Height (Lowest Point) 722 731 739 749
Top Tube (SLACK) 562 590 621 655
Top Tube (STEEP) 564 592 623 657
Wheelbase (SLACK) 1206 1230 1255 1285
Wheelbase (STEEP) 1193 1217 1242 1272
