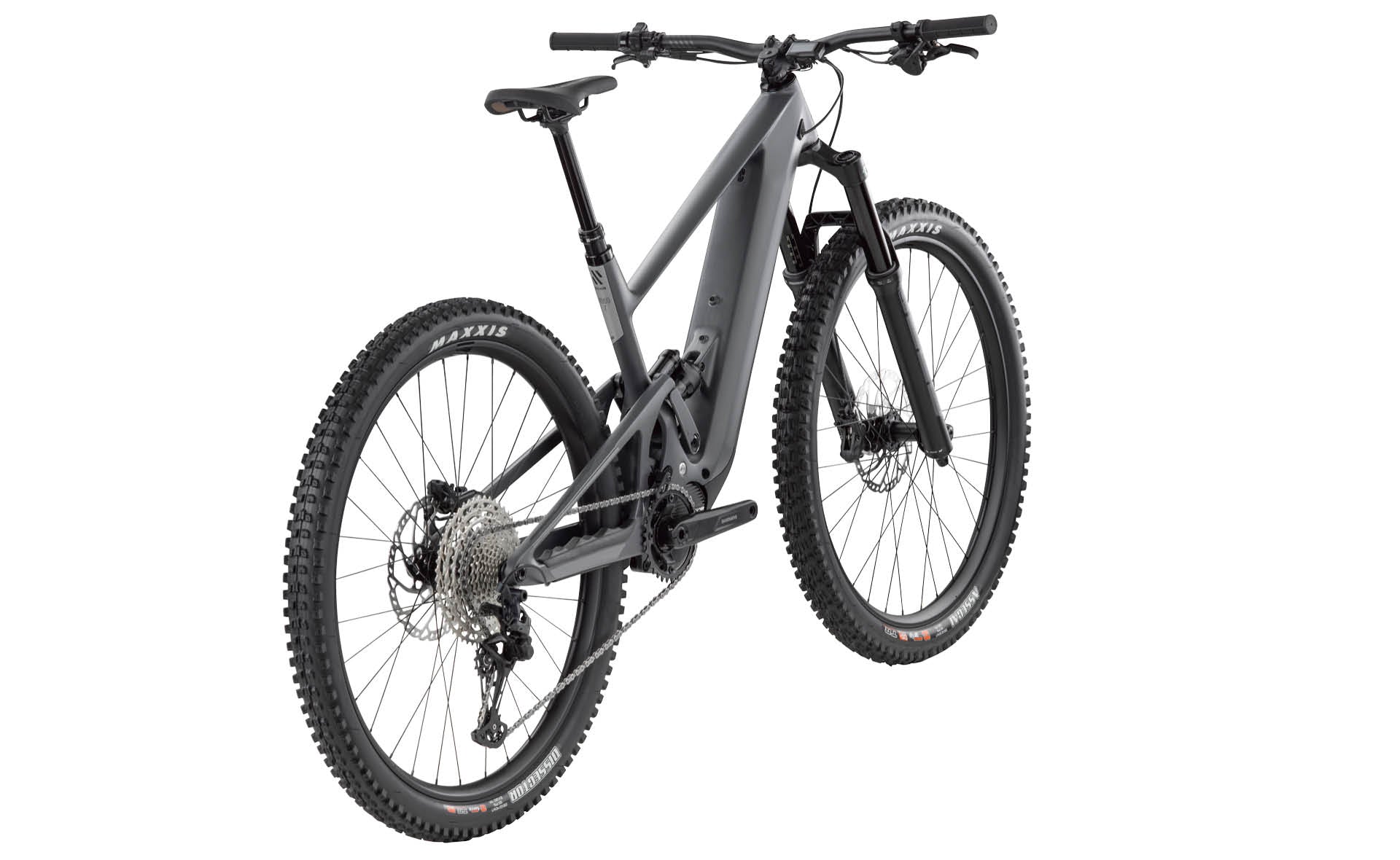

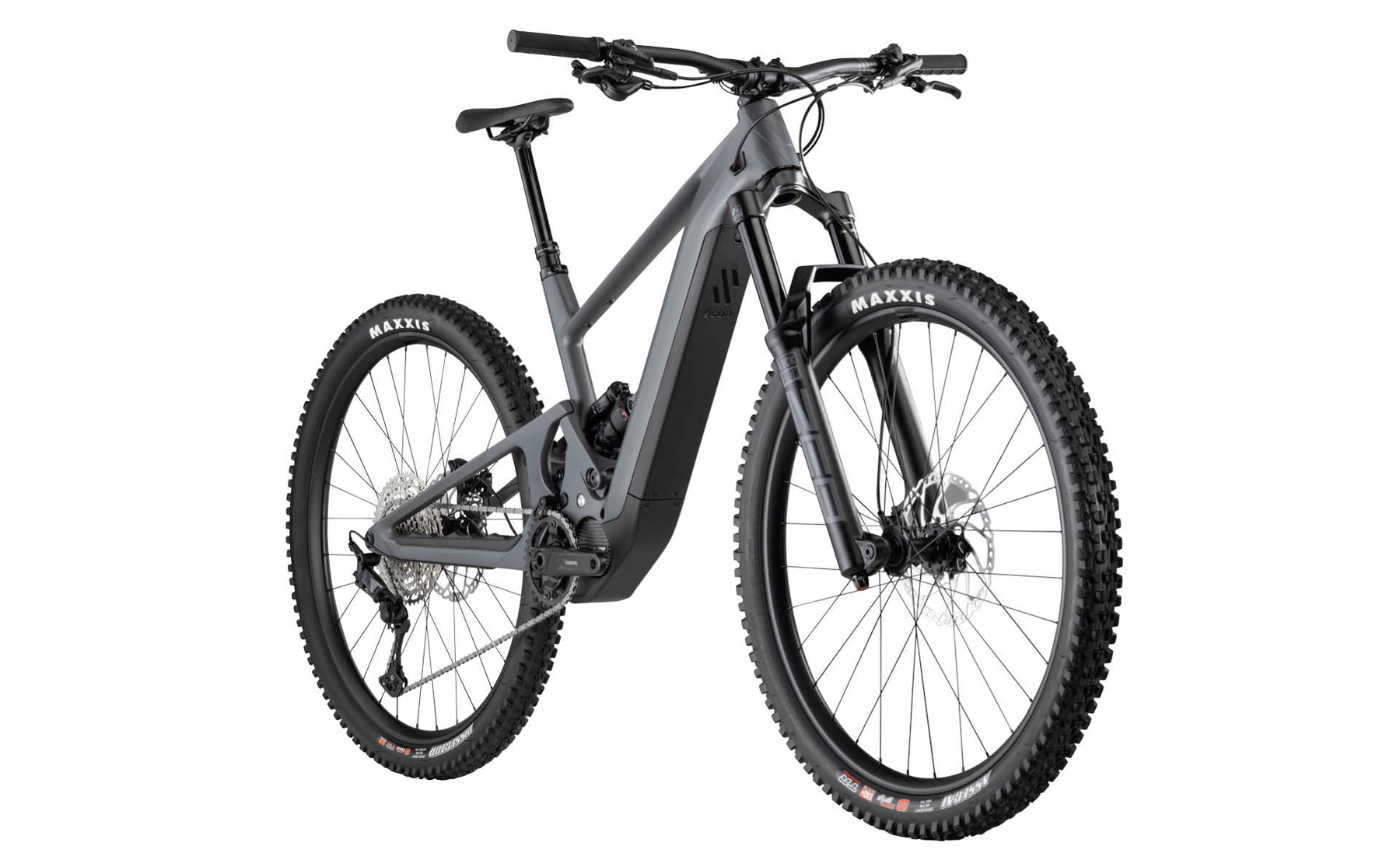

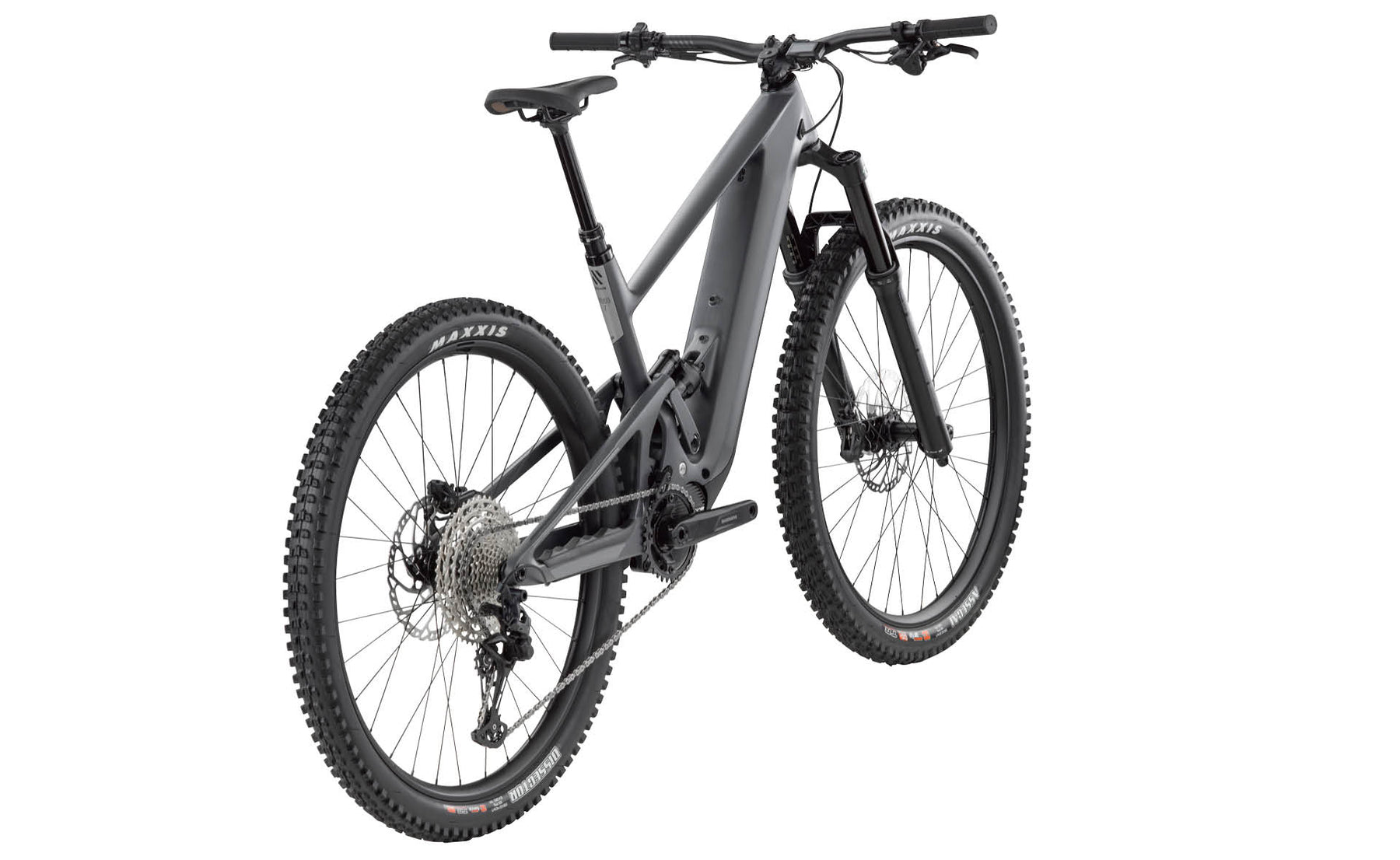

4060 Z LT SLX

Slate

SCOR Archive Product

Technical Details

Frameset

Frame:
SCOR 4060 Z Full Carbon Frame | Lower-Link Driven Instant Center Linkage | 140 / 160mm Rear Travel | Fully Guided Internal Cable Routing | Boost 148 | SRAM UDH

Fork:
RockShox ZEB Select RC | 170mm Travel | 44mm Rake

Suspension

Front Suspension:
RockShox ZEB Select RC | 170mm Travel | 44mm Rake

Rear Suspension:
RockShox Super Deluxe Select | Rebound adjust

E-System

Drive Unit:
SHIMANO Steps EP8 DU-EP800

Battery Pack:
Darfon 36V | SHIMANO Steps service included | 720 Wh

Display:
SHIMANO Steps EP8 Wireless Cycle Computer SC-EM800

Drive Unit Control:
SHIMANO Steps EP8 Left Switch Unit SW-EM800-L

Charger:
Darfon Smart Plus 100-240V | 4A | EU

Cockpit

Stem:
SCOR Alloy Stem | 3D Forged | 31.6mm Bar Bore | 35mm Length | 0° Angle

Handlebar:
SCOR Alloy Bar | 31.8mm Clamp | 800mm Wide | 20mm Rise | 5° Upsweep | 9° Backsweep

Grips:
VP VPG-125A

Seat

Seatpost:
X-Fusion Manic | S 125mm | M 150mm | L / XL 170mm Travel

Saddle:
Fizik Terra Alpaca X5

Drivetrain

Crankset:
SHIMANO (FC-EM600) | 165mm Length

Chainrings:
34T

Cassette:
SHIMANO Deore (CS-M6100-12)

Cassette Size:
10-51T

Chain:
SHIMANO CN-M6100

Rear Derailleur:
SHIMANO Deore SLX (RD-M7100)

Shifters:
SHIMANO Deore SLX (SL-M7100-R)

Gears:
1 x 12

Brakes

Brake Levers / Calipers:
SHIMANO Deore | BL-M6100 Levers | BR-M6120 Calipers

Rotors:
SHIMANO SM-RT66

Rotor Size (F/R):
203mm

Wheels

Rims:
XDH-130 | 32 Spokes | 6061-T6 Alloy | Welded Joint | 30mm Internal Width | Tubeless ready

Hubs (F/R):
XDH-130 | 32 Spokes | Sealed Cartridge Bearings

Tires:
Maxxis Assegai 29 x 2.5" 3C MaxxGrip Exo+ TR (F) | Maxxis Dissector 29 x 2.4" 3C MaxxTerra DD TR (R)

Tubeless Information:
Tubeless Ready Rims | Tubetype Tires

Additional Information

Tire Clearance:
Width: 64mm | Diameter: 750mm

Weight without Pedals:
22.80kg

ASTM Classification:
Level 4

System Weight Limit:
130kg

Size S M L XL
Rider Height 155 - 170 165 - 180 175 - 190 185 - 200
BB Drop (SLACK) 19 19 19 19
BB Drop (STEEP) 16 16 16 16
BB Height (SLACK) 350 350 350 350
BB Height (STEEP) 353 353 353 353
Chainstay 435 435 435 435
Fork Length 580 580 580 580
Fork Rake 44 44 44 44
Front Center (SLACK) 773 798 823 853
Front Center (STEEP) 761 785 810 840
Head Tube 87 99 115 127
HT Angle (SLACK) 63.8 63.8 63.8 63.8
HT Angle (STEEP) 65 65 65 65
Reach (SLACK) 435 459 485 515
Reach (STEEP) 431 456 481 511
Seat Tube 400 425 440 470
ST Angle @750mm Saddle Height (SLACK) 76.5 76.5 76.5 76.5
ST Angle @750mm Saddle Height (STEEP) 76 76 76 76
ST Angle Actual (SLACK) 69 69 69 69
ST Angle Actual (STEEP) 68.5 68.5 68.5 68.5
ST Angle Effective (SLACK) 77.9 77.9 77.9 77.9
ST Angle Effective (STEEP) 77.4 77.4 77.4 77.4
Stack (SLACK) 601 612 626 637
Stack (STEEP) 603 615 629 640
Stand Over Height (80 in Front of BB) 759 771 775 791
Stand Over Height (Lowest Point) 722 731 739 749
Top Tube (SLACK) 562 590 621 655
Top Tube (STEEP) 564 592 623 657
Wheelbase (SLACK) 1206 1230 1255 1285
Wheelbase (STEEP) 1193 1217 1242 1272
